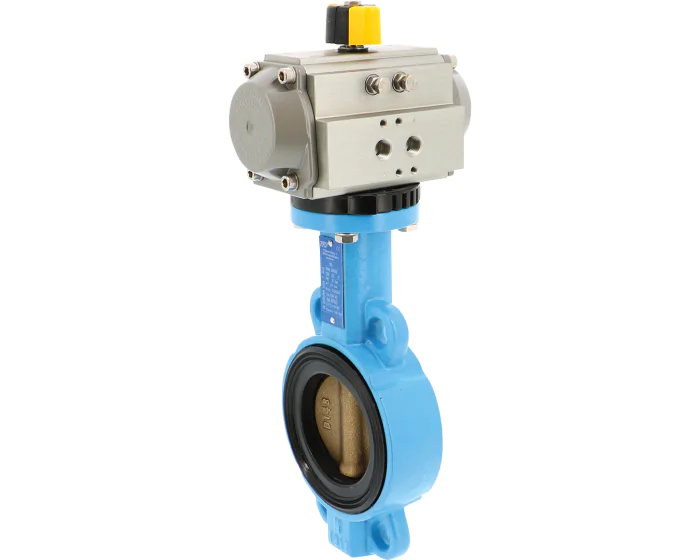

The wafer 1158 butterfly valve has a ductile iron body, cupro aluminium disc and NBR seat. PS: 16 bar. Installation between flanges PN 10/16 and ANSI 150. It is actuated with pneumatic actuator with adjustable limit screws ALPHAIR 6 bar.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Cupro aluminium |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Double acting | 260513017006R | S1003001 |
€302.33
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Spring return | 260513017107R | S1003002 |
€342.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260514017006R | S1003003 |
€314.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260514017107R | S1003004 |
€350.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260515017007R | S1003005 |
€336.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260515017108R | S1003006 |
€415.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260516017007R | S1003007 |
€376.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260516017108R | S1003008 |
€455.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260517017008R | S1003009 |
€460.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260517017109R | S1003010 |
€548.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260518017008R | S1003011 |
€512.04
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 260518017110R | S1003012 |
€668.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260519017009R | S1003013 |
€638.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Spring return | 260519017111R | S1003014 |
€890.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260520017010R | S1003015 |
€894.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Spring return | 260520017112R | S1003016 |
€1,173.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN250 - 10'' | 260521017011R | S1003017 |
€2,026.13
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN250 - 10'' | 260521017113R | S1003018 |
€2,068.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN300 - 12'' | 260522017012R | S1003019 |
€2,386.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN300 - 12'' | 260522017115R | S1003020 |
€3,033.60
(excl. btw)
|
add to cart |
